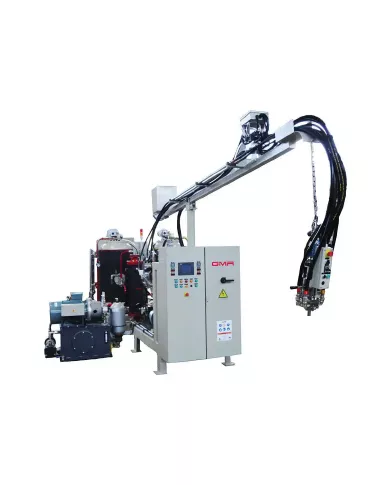

PU HIGH PRESSURE FOAMING MACHINE
PU HIGH PRESSURE FOAMING MACHINE
PU HIGH PRESSURE FOAMING MACHINE MODELS:
H6, H10, H20, H40, H60, H100, H200 & H300
H6, H10, H20, H40, H60, H100, H200 & H300
-
0
-
STT Name Download 1 PU HIGH PRESSURE FOAMING MACHINE Click download -
-
-
- +
-
703
- Products Information
- Comment
2-COMPONENT (ISO & POLYOL) RIGID & FLEXIBLE FOAM APPLICATION (NON-FILLER)
» Electrical supply (standard): 380V, 3 phases, 50Hz (optional upon request): 220V, 3 phases, 60Hz» Full range of self-cleaning mixing heads
» Hydraulic unit, boom and chiller are available
»Applications: – Automotive
- Armrest & Headrest
- Carseat
- Carpet Underlay
- Glass Encapsulation & Sunshade
- Dashboard, Steering Wheel & Engine Cover
- Continuous PU Sandwich Panel Plant
- Discontinuous PU Sandwich Panel Plant

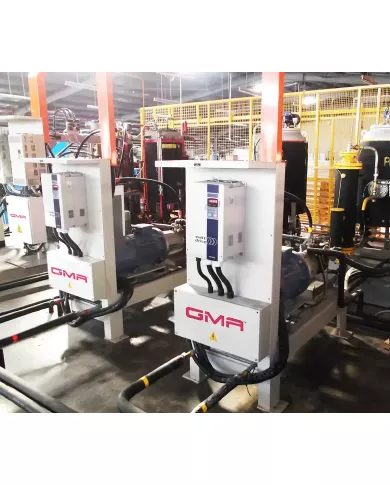

- Refrigerators and Freezers Production: Cyclopentane Plant
OPTIONAL:
» Magnetic Couplings for pumps to ensure non-leakage of chemicals
» Flow meters and closed loop control
» Air Nucleating unit for improvement of mixing and flowability
| Model |
Max Output |
Max Output |
Absorbed Power | Ratio Range | Tank Capacity | Compressed Air | |
|---|---|---|---|---|---|---|---|
|
GMA |
Kg/min |
Kg/min |
KW |
POL/ISO |
Litre (each) |
6 bar (nl/min) |
|
|
|
(Ratio) 1:1 |
(Ratio) 2: 1 |
|
|
|
|
|
| H6 |
5.4 |
|
Ω20 | 5:1 to 1:5 | 100 | 80 | |
| H10 |
9 |
|
Ω24 | 5:1 to 1:5 | 270 | 100 | |
| H20 |
18 |
- |
Ω25 |
5:1 to 1:5 |
270 |
100 |
|
| H40 |
36 |
- |
Ω30 |
5:1 to 1:5 |
270 |
100 |
|
| H60 |
- |
54 |
Ω40 |
2:1 to 6:1 |
270 |
100 |
|
| H100 |
90 |
- |
Ω50 |
5:1 to 1:5 |
270 |
100 |
|
| H200 |
175 |
|
Ω100 | 5:1 to 1:5 | 270 | 120 | |
| H300 |
300 |
|
Ω180 | 5:1 to 1:5 | 500 | 120 |
Note:
- Output indicated as maximum output of machine per model, based on 1:1 component A:B mix ratio, PU chemicals with viscosity between 15 – 2000 cps, specific gravity: ISO = 1.20, POL: 1.05
- We supply various carousel plants for different products application.
- Supplier reserves the rights to change design or specifications according to technology advancement.
