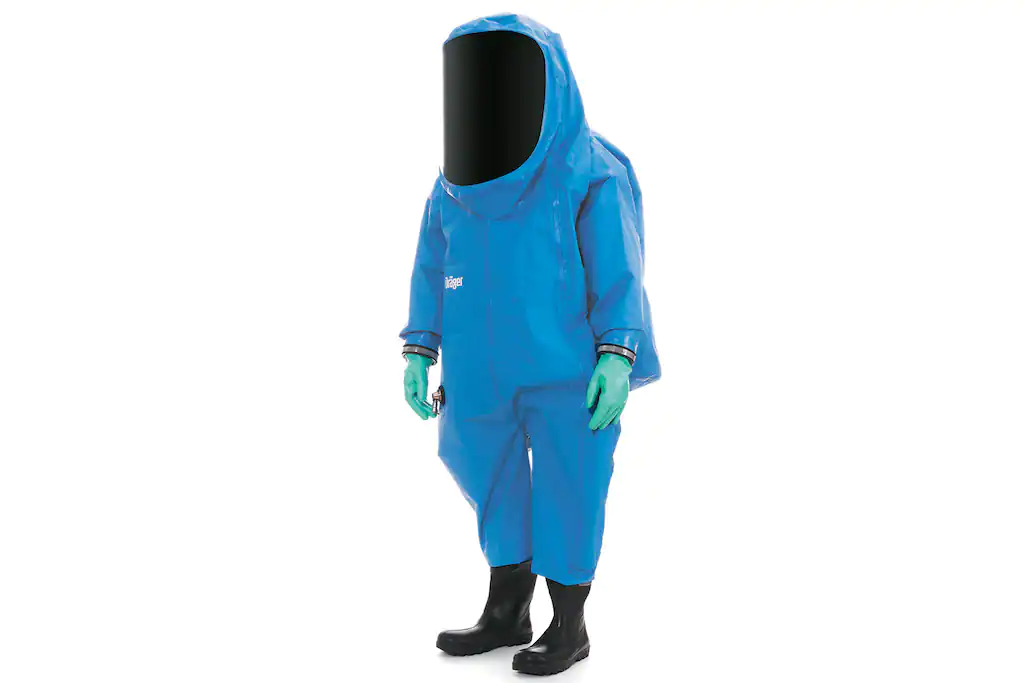

Dräger CPS 7900

Similar products:Draeger CPS 5900, Draeger CPS 6900

Protection in a class of its own

The chemical protective suit Dräger CPS 7900 was developed to protect its wearer when handling toxic or hazardous materials and to provide much needed support for a variety of dangerous tasks. The suit material D-mex^™ offers unique resistance to various substances. The Dräger CPS 7900 meets and exceeds the requirements of international standards of fire departments, search and rescue organizations, and industry for reusable protection suits.

D-mex^™: 5-Fold safety

The suit's innovative and unique material D-mex^™ consists of five layers. An especially sturdy elastomer layer as well as a barrier layer resistant to chemicals is on the inside as well as the outside. This allows the suit to retain its full protective capacity even when the material on the outside becomes damaged. Its electrostatic properties make it possible to use the suit in explosive areas. The flexibility of D-mex^™ even makes it possible to handle liquefied gases such as ammonia at a contact temperature of -80°C.

Outstanding wearing comfort

The chemical protective suit reduces the stress during the already difficult work in hazard zones and danger areas. With its new, ergonomic cut and five available sizes, the suit offers its wearers with a body height of 1.50 m to 2.10 m the highest degree of mobility during a wide variety of activities and tasks. Moreover, the clearly lighter weight and better drape of the suit material adjusts to the wearer's movements and offers the full range of flexibility.

Ready at any time

​Innovative materials and new service concepts made it possible to significantly reduce time and expenses for regular testing and expenses. In addition, the suit can be easily cleaned and disinfected. This means the time and expense spent over the 15 years of service life of the suit is much less.

Never again gasping for a breath

​Breathing air is a scarce commodity when it comes to runs involving toxic materials or hazardous atmospheres. The route to the deployment location and the decontamination location must be bridged. The actual tasks must be completed. This is followed by a careful decontamination so that suits can be removed. The amount of air available in a compressed air breathing apparatus often is insufficient to cover both activities. For this reason the suit can be equipped with optional pass thrus.

Intelligent details from head to toe

The design of the visor in combination with the full-face mask Dräger FPS 7000 offers an almost natural field of vision. Three different glove combinations can be attached to the suit quickly and without tools. Optionally, the suit can be equipped with integrated safety boots or gas-tight socks. An integrated radio pocket and a holder for push-to-talk buttons make communication easier.

Further accessories are available to customize the chemical protective suit to meet your specific needs and requirements, thereby expanding your range of application options. Including pressure gauge holder, height adjustment, anti-fog visor and D-Connect.

Key Facts

Product type: Gas-tight suit

Reuse Class: Reusable

Suit Type Class: 1

Performance Class: +++

SCBA design: inside

Shelf Life (years): 15

Material: D-mex^™

Available Colors: Blue, Orange

Resistance

Mechanical Resistance: ++

Chemical Resistance: ++

Temperature Resistance: ++

Resistance against

Particles                                    ✓

Liquids                                      ✓

Known gases                           ✓

Unknown gases                       ✓

Mechanical stress                    ✓

Deepcold substances              ✓

Ex-zones                                  ✓

Flash fires                                ✓

Approvals

EN 943                                 ✓

EN 14605                             ✗

EN ISO 13982-1                  ✗

EN 13034                            ✗

EN 1073-1 / EN 1073-2      ✓

EN 14126                           ✓

EN 1149                             ✗

EN 14593                          ✓

EN 14594                         ✓

SOLAS                             ✓

ISO 16602                        ✓

Gas-tight suit

• ​SCBA worn inside the protective suit
• five suit sizes (S-XXL)
• side zipper
• suit material D-mex, reusable
